The export orders API allows an external system to query bindCommerce to obtain orders that have been imported from the sales platforms (eCommerce, marketplace, etc ...).

The choice of which orders to expose to the API is made through the bindCommerce interface. It is possible to create multiple connectors (which correspond to different URLs to be called by the external system), each of which responding to a different configuration (filter which orders to return to the API).

Orders can act jointly on the API

  • an order filter: based on the characteristics of the order (e.g. shipment status, destination of the goods, etc ...)
  • a product filter: based on the characteristics of the products contained therein (for example, it is possible to export only orders that contain order lines that refer to products from a specific supplier)

It is also possible to apply transformations to exported orders (such as changing the billing address or prices).

Export order configuration

bindCommerce allows you to export all orders to API management thanks to a simple configuration.

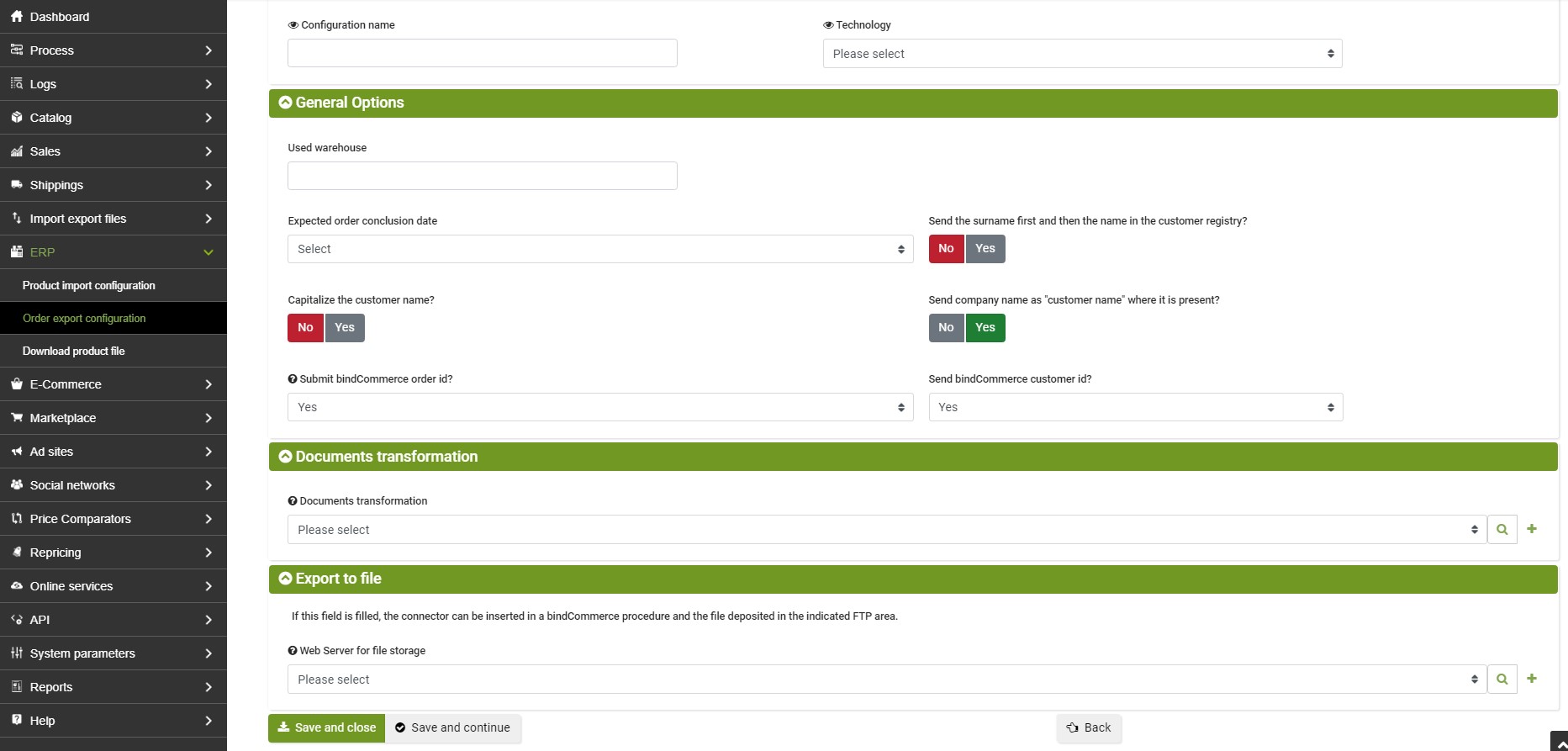

thumb api export orders

To create the configuration from the bindCommerce control panel go to the menu:

API >> Export orders

Click on Add and fill in the required fields as shown below:

  • Configuration Name: Choose the desired name
  • Technology: API
  • Order processing: Premium function. For the configuration, please refer to the appropriate Order Transformation technical guide
  • Web Server for file storage: if this field is set, the connector can be inserted in a bindCommerce procedure and the file stored in the FTP area indicated. To ensure that the file stored in the FTP area has the date and time as a suffix in the name, you need to create a custom parameter with the name ERP_FILENAME_BY_DATETIME and value 1.

Click on SAVE AND CLOSE.

Export order connector

To create the connector that will allow you to export orders from bindCommerce to the API management system, you need to go to the menu:

Processes >> Connectors

Click on Add and fill in the fields as follows:

  • Connector Name: Choose the name you think is most appropriate
  • Node Type (Technology): API
  • Node: the node created earlier
  • Connector type: API [export orders]

By clicking on SAVE AND CONTINUE you will have access to the additional fields to be filled in.

  • The calling system must use the following string: copy the URL in this field
  • Connector Configuration: Select the configuration created earlier
  • Filter on sales documents: to create a filter on orders, please follow the instructions given in the specific Order Filters tutorial
  • Product filter: to create a product filter, please follow the instructions given in the Product Filters tutorial

Click on SAVE AND CLOSE.

Call and authentication

The call is made to the URL generated by bindCommerce for the specific connector.
Authentication takes place through a token assigned by bindCommerce. The parameter is passed into the request header.

Example PHP script to make the call

<?php

$curl = curl_init();

curl_setopt_array($curl, array(
          CURLOPT_URL => "https://hABCDE.bindcommerce.cloud/integrator-tool/api/export_orders.php?connector=2",
          CURLOPT_SSL_VERIFYHOST => true,
          CURLOPT_RETURNTRANSFER => true,
          CURLOPT_HTTPHEADER => array(
                "cache-control: no-cache",
                "token: 84b670ea63539f5bc0572a260f1f4dfb"
          ),
));

$response = curl_exec($curl);
$err = curl_error($curl);

curl_close($curl);

if ($err) {
echo "cURL Error #:" . $err;
} else {
echo $response;
}

?>

Orders file

An XML file containing the orders is provided in response to the request.

Example file

<?xml version="1.0" encoding="UTF-8"?>
<Documents><Document>
<General> ---- dalla versione 4
         <DocumentType>C</DocumentType>
         <bindCommerceNumber>15918</bindCommerceNumber>
         <Number>89568</Number>
         <Node>eBay superseller</Node>
         <NodeID>55</NodeID>
         <Technology>Marketplace eBay</Technology>
         <Market></Market>
         <Date>2018-03-22 17:34:07</Date>
         <StatebindID>1</StatebindID>
         <StateCode>C</StateCode>
         <StateName>Completed</StateName>
</General> ---- dalla versione 4
<Customer>
         <Code>14833</Code>
         <Name>Daniele</Name>
         <Surname>Beccarelli </Surname>
         <Company></Company>
         <Address>Via delle Rosine 70 </Address>
         <Postcode>00121</Postcode>
         <City>Lido di Ostia</City>
         <Province>RM</Province>
         <CountryCode>IT</CountryCode>
         <VatCode></VatCode>
         <FiscalCode></FiscalCode>
         <Phone>32871800000</Phone>
         <MobPhone></MobPhone>
         <Email>This email address is being protected from spambots. You need JavaScript enabled to view it.;;/Email>
</Customer>
<Delivery>
         <Name>Daniele</Name>
         <Surname>Beccarelli </Surname>
         <Company></Company>
         <Address>Via delle Rosine 70 </Address>
         <Postcode>00121</Postcode>
         <City>Lido di Ostia</City>
         <Province>RM</Province>
         <CountryCode>IT</CountryCode>
         <Phone>32871800000</Phone>
         <MobPhone></MobPhone>
         <Email>This email address is being protected from spambots. You need JavaScript enabled to view it.;;/Email>
</Delivery>
<Payments>
         <PaymentName>PayPal</PaymentName>
         <PaymentCode>PP</PaymentCode>
         <PaymentTotal>0.00</PaymentTotal>
         <PaymentStatus>Complete</PaymentStatus>
         <PaidTime>2018-03-22 17:34:31</PaidTime>
</Payments>
<Rows>
         <Row>
         <bindID>17027</bindID>
         <Code>3961824</Code>
         <Barcode>8000072058222</Barcode>
         <Description>EURO 3 PLAST Sottovaso medea cm24 verde Giardino Arredo da esterno</Description>
         <Qty>4</Qty>
         <ProductDimensions>
         <Weight>0.05</Weight>
         <WeightUom>Kg</WeightUom>
         <WeightVolume>0</WeightVolume>
         <LwhUom></LwhUom>
         <Length>24</Length>
         <Width>24</Width>
         <Height>4</Height>
         </ProductDimensions>
         <ProductCategories>
         <Category></Category>
         </ProductCategories>
         <Picture>https://webserver.superseller.com/bindcommerce/product/big/17/a5f5_cb73a_130572.jpeg</Picture>
         <Supplier>Rossi S.p.A.</Supplier>
          <SupplierByRepricing>Rossi S.p.A api name</SupplierByRepricing>
         <SupplierByRepricingCost>1.23000</SupplierByRepricingCost>
         <SupplierPrice>0.58</SupplierPrice>
         <MPN>3961824</MPN>
         <PriceVatExcluded>1.12</PriceVatExcluded>
         <Price>1.37000</Price>
         <Discounts>0.00000</Discounts>
         <VatRate>22</VatRate>
         <TotalVatExcluded>4.49</TotalVatExcluded>
         <Total>5.48000</Total>
         <TotalDiscounted>5.48000</TotalDiscounted>
         <Currency>EUR</Currency>
         <Params>
                  <Param>
                  <Name>Param name</Name>
                  <Value>Param value example</Value>
                  </Param>
         </Params>

         </Row>
</Rows>
<Amounts>
         <TotalWithoutTax>4.49</TotalWithoutTax>
         <VatAmount>0.99</VatAmount>
         <Total>11.97</Total>
         <Currency>EUR</Currency>
         <ShippingCost>6.49</ShippingCost>
         <ShippingCostWithoutTax>6.49</ShippingCostWithoutTax>
         <ShippingTax>0.22</ShippingTax>
         <InternalComment></InternalComment>
         <SellerNote></SellerNote>
         <CouponDiscount>0.00</CouponDiscount>
         <CouponCode></CouponCode>
         <DiscountToCart></DiscountToCart>
</Amounts>
<Commission>
         <PayPalCommission>0.61</PayPalCommission>
         <PayPalTransactionID></PayPalTransactionID>
         <eBayCommission>0.48</eBayCommission>
         <eBayAccount>suo_account</eBayAccount>
         <eBayAdjustmentAmount>0.00</eBayAdjustmentAmount>
         <eBayAmountSaved>13.47</eBayAmountSaved>
</Commission>
<Shipping>
         <Carrier>Altro corriere 3-5 giorni</Carrier>
         <TrackingNumber></TrackingNumber>
         <TransportedWeight>0.2</TransportedWeight>
         <ShippedTime>0000-00-00 00:00:00</ShippedTime>
</Shipping>
</Document></Documents>

File fields

DOCUMENT HEAD FIELDS

Field

Description

DocumentType

Type of document. In standard implementations is used C = Sales order.

bindCommerceNumber

Internal bindCommerce ID for the order. In normal conditions it is a numerical counter. If you are asked to split orders by supplier, the format becomes [order_id] - [supplier_id]. To request the split, the API_ORDERS_OUT_SPLIT_SUPPLIER parameter must be set to 1 in the customized parameters table.

Number

Order number assigned by the sales channel

Node

Name of the bindCommerce node from which the order originates (chosen by the context administrator). It may contain the name of the marketplace and the account (e.g. eBay superseller) or the name of the website (e.g. www.superseller.com)

Technology

Technology to which the node belongs. Some possible values are for example: eBay Marketplace, Amazon Marketplace, ePrice Marketplace, ManoMano Marketplace, Wish Marketplace, Magento eCommerce, Prestashop eCommerce, etc ...

Market

Order market (data compiled only for some sales channels)

Date

Date and time of execution of the order

LastUpdate

Date and time of the last update of the document

StatebindID

BindCommerce order status id

StateCode

Order status code. Order states are inherited directly from the platforms from which the order originates.

StateName

Name of the order status

Customer

Node that sends tags relating to customer information (billing data)

Delivery

Node that sends tags relating to the information on the recipient of the shipment

Payments

Node that refers to tags related to Payment information

Rows

Node that refers to tags relating to order lines

Amounts

Node that refers to tags relating to information on amounts

Commission

Node that refers to tags relating to information on Commissions

Shipping

Node that refers to tags related to shipping information

BILLING INFORMATION (CUSTOMER)

Field

Description

Code

Numeric code that identifies the customer

Name

Name

Surname

Surname

Company

Company

Address

Street Address

Postcode

Postcode

City

City of residence

Province

District

CountryCode

ISO 3166-1 Alpha-2 country code (e.g. IT)

VatCode

VAT Number

FiscalCode

Personal number (e.g. NINo for UK)

Phone

Phone number

MobPhone

Mobile number

Email

E-mail. In some cases it contains a non-real email address (for example Amazon assigns a temporary relay address)

EInvoiceDestCode

Recipient code for electronic invoicing (SDI)

Pec

Certified mail

SHIPPING INFORMATION (DELIVERY)

Field

Description

Code

Numeric code that identifies the customer

Name

Name

Surname

Surname

Company

Company

Address

Street Address

Postcode

Postcode

City

City of residence

Province

District

CountryCode

ISO 3166-1 Alpha-2 country code (e.g. IT)

Phone

Phone number

MobPhone

Mobile number

Email

E-mail. In some cases it contains a non-real email address (for example Amazon assigns a temporary relay address)

PAYMENT INFORMATION

Field

Description

PaymentName

Mayment method name

PaymentCode

Payment method code

PaymentTotal

Collection cost including VAT (for example for cash on delivery there is an additional cost charged to the customer)

PaymentStatus

Payment status

PaidTime

Date and time of payment

PaymentCOD

It can be: YES or NO. Indicates if the payment method is cash on delivery.

ORDER LINES (ROWS)

Each order line is contained in an tag

Field

Description

bindID

Internal bindCommerce identifier for the order line

Code

SKU code of the product

Barcode

Bar code extracted from the product master data connected to the SKU sold

Description of the order line as it appears on the sales channel. For example, for eBay orders the title of the advertisement is returned.

Bar code extracted from the product master data connected to the SKU sold

Qty

Quantity purchased (number)

ProductDimensions

Tag that groups the tags Weight (Weight), WeightUom (weight measurement unit), WeightVolume (volumetric weight), LwhUom (linear measurement unit), Length (length), Width (base), Height (height).
This information, if any, is extracted from the products database.

ProductCategories

Category - KeyCat of the category (s) combined with the product purchased


URL immagine prodotto (eventualmente estratta dall’anagrafica articoli)

Supplier

Name or code of the supplier (possibly extracted from the article master)

SupplierPrice

Cost price to be paid to the supplier (to indicate the price list to be used, enter the "SupplierPrice" key in the "Price list export file key" field)

PriceVatExcluded

Unit price excluding VAT (ref. product_item_price)

Price

Unit price including VAT (ref. product_final_price)

SupplierByRepricing

Name of the supplier in the event that the sale price has been imposed through the repricing algorithm

SupplierByRepricingCost

The cost of the product related to the supplier (SupplierByRepricing) obtained through the repricing algorithm

Discount

Discount percentage (ref. product_discount_percent)

VatRate

VAT rate (e.g. 0.22 to indicate 22%). See note (***)

TotalVatExcluded

Total price excluding VAT (ref. product_item_price_total)

Total

Total price including VAT (ref. product_final_price_total)

TotalDiscounted

Total price including VAT (ref. product_final_price_total)

Currency

ISO 4217 currency (e.g. EUR, CHF, GBP, USD). bindCommerce is able to manage a currency conversion so that all amounts are expressed in Euros.

ORDER LINES: COMMISSIONS

Field

Description

Commission

eBayCommission (eBay commission on order line)

AMOUNTS

Field

Description

TotalWithoutTax

Cost of goods excluding VAT excluding VAT (ref. order_subtotal)

VatAmount

VAT amount (ref. order_tax)

Total

Total order (ref. order_total)

Currency

ISO 4217 currency (e.g. EUR, CHF, GBP, USD).

ShippingCost

Shipping cost including VAT (ref. order_shipping_total)

InternalComment

Notes entered by the customer during the purchase phase (ref. customer_note)

SellerNote

Notes entered by the seller (ref. seller_note)

CouponDiscount

Coupon discount (ref. coupon_discount)

CouponCode

Coupon Code

ShippingCostWithoutTax

Amount of shipping costs excluding taxes

ShippingTax

VAT rate applied to the shipment

DiscountToCart

Cart discount (ref. discount_to_cart)

COMMISSIONS

Field

Description

PayPalCommission

PayPal fee amount (available only for eBay orders)

PayPalTransactionID

PayPal transaction ID

eBayCommission

eBay fee amount

eBayAccount

Account eBay

eBayAdjustmentAmount

eBay order cost adjustment

eBayAmountSaved

eBay order cost adjustment

SHIPPING INFORMATION

Field

Description

Carrier

Carrier

TrackingNumber

Tracking Number

TransportedWeight

Weight

ShippedTime

Shipping date and time

ShippingMethod

Shipping Method

Notes relating to the VAT rate

bindCommerce imports orders from various sources: eCommerce platforms and marketplaces (such as eBay, Amazon, ePrice, Spartoo, Wish), and each of the sources transmits a different detail regarding the application of VAT. Usually, marketplaces do not adapt the price based on the type of buyer (private individual / company) and its origin (Italy / Europe / rest of the world). If a buyer buys a certain asset for € 100.00, the determination of how much value is attributable to taxable and how much VAT is an activity that can be performed only after the purchase (and a possible VAT exemption will actually translate in a sale at a higher price). Also on both eBay and Amazon, the request for an invoice is made with manual methods (messages) concurrently or immediately after the purchase (on Amazon always after), therefore it is not possible to make price adjustments before payment.
Furthermore, observing the data relating to the rates transmitted by the main marketplaces, we note that: eBay (all markets) always transmits the rate that was set when the advertisement was created (even when it should not be applied), while Amazon (all markets, if business options are not activated) does not transmit any VAT rate (unlike eBay which transmits it potentially wrong).
With these premises, 2 alternative approaches are possible:

  1. transmit the definitely correct data (who the buyer is, what he purchased and what he paid) and the rate coming from the marketplace (which may not be correct) and then let ERP to recalculate the correct rates to be applied and any exemption codes.
  2. use a Premium bindCommerce function that is able to recalculate the rates to be applied to sales, for shipping costs and for the goods, according to a "VAT rate group" parameter (product attribute to be imported previously) and the destination of the goods

Order status

The values that bindCommerce transmits in the StateName field represent the order status used by the platform from which the order originates. The StateCode field is used only on some platforms and the StateName field can be considered unique within a certain technology. A presentation of the possible order status for the most common platforms follows.

ORDER STATUS FOR EBAY MARKETPLACE

StateName

Note

Active

Purchase not yet completed/confirmed

Cancelled

Cancelled

CancelPending

Being canceled

Completed

Purchase completed

Refunded

Totally refunded

Shipped

Shipped

ORDER STATUS FOR WISH MARKETPLACE

StateName

Note

APPROVED

Purchase confirmed (paid to Wish)

REFUNDED

Refunded

SHIPPED

Shipped

ORDER STATUS FOR AMAZON MARKETPLACE

StateName

Note

Pending

Purchase not yet completed/confirmed

Cancelled

Cancelled

Unshipped

Confirmed (paid to Amazon) but not yet shipped

Shipped

Shipped

ORDER STATUS FOR EPRICE MARKETPLACE

StateName

Note

RECEIVED

Received by ePrice

SHIPPED

Shipped

SHIPPING

In shipping

WAITING_ACCEPTANCE

Awaiting acceptance by the seller

ORDER STATUS FOR ALLEGRO MARKETLACE

StateName

Note

BOUGHT

purchase without checkout form filled in

FILLED_IN

checkout form filled in but payment is not completed yet so data could still change.

READY_FOR_PROCESSING

payment completed. Purchase is ready for processing.

CANCELLED

purchase cancelled by buyer.

ORDER STATUS FOR CDISCOUNT MARKETLACE

StateName

Note

CancelledByCustomer

WaitingForSellerAcceptation

AcceptedBySeller

PaymentInProgress

WaitingForShipmentAcceptation

Shipped

RefusedBySeller

AutomaticCancellation

ex: no answer from the seller

PaymentRefused

StateName

Note

ShipmentRefusedBySeller

Waiting for Fianet validation “A valider Fianet” (None)

Validated Fianet

RefusedNoShipment

AvailableOnStore

NonPickedUpByCustomer

PickedUp

Filled

ORDER STATUS FOR MAGENTO ECOMMERCE PLATFORM

note that these states can be changed by the site operator

StateName

Note

canceled

closed

complete

completed

failed

holded

on-hold

paid

paypal_canceled_reversal

paypal_reversed

pending

processing

refunded

ORDER STATUS FOR PRESTASHOP ECOMMERCE PLATFORM

note that these states can be changed by the site operator

StateName

Note

Awaiting bank wire payment

Awaiting Cash On Delivery validation

Awaiting check payment

Awaiting for PayPal payment

Canceled

Delivered

On backorder (paid)

Payment accepted

Payment error

Processing in progress

Refunded

Shipped

Order cancellation management

Information relating to the total cancellation of an order can be inferred from the change of status of the same.
Regarding the case of "some canceled order lines", bindCommerce will transmit an update of the order itself by setting the quantity for the canceled order lines to 0 (zero).

0 of 5 - 0 votes
Thank you for rating this article.

Tutorials

bindCommerce platform
Nodes
Creating a Web Server node to publish images
Connectors
Procedures
Logs
Products
Categories
Product attributes
Price lists and prices
Manufacturers
Alternative descriptions
Payment and shipping methods
Orders
Customers
Filter setting on products
Filter setting on orders
Multi warehouse
Internal processing
How to use templates
Template gallery
Creation and customization of templates
Responsive photo gallery in eBay description
Creation and activation of a connector to create/update alternative descriptions
Match categories
Update Price List
Dynamic currency conversion
Internal processing script
Attribute enrichment script
Barcode type calculation
Generation of derived products
Order transformation
Quantity rules
Distribution grid
Conversions and normalizations
Conversions
Currency conversion
Order status normalization
SKU recoding
Marketplaces
eBay integration
eBay nodes installation
Matching with eBay categories
Sales terms
Parameters for listing generation
eBay listing generation
Download listings from eBay
Fixed price sale or auction
eBay listing details list
Listing update
Early ending of listings
Relisting
Responses from eBay and related logs
The automated workflow
Download orders from eBay
Download categories from the eBay shop and match with product categories
Matching of eBay categories international markets
Copy Manufacturer and MPN to Attributes
Amazon integration
Amazon node
PRE-SALE ACTIVITIES
Amazon listings and details
Creation and publication of products/offers to Amazon
Set up Amazon shipping templates
Products already on Amazon
Parameters configuration for preparing Amazon offers
Amazon offers generation connector
Creation of products already present on Amazon
New products publishing
Parameters configuration for preparing Amazon offers
Creation of products not present on Amazon
Amazon offers generation connector
Matches with Amazon categories
Selling on Amazon: Attributes tutorial
Clothing category tutorial
Shoes category tutorial
Responses from Amazon and related Logs
AFTER-SALES ACTIVITIES
Download orders from Amazon
Order status update from bindCommerce
Amazon Business integration
PRE-SALES ACTIVITIES
B2B prices
VAT classification
Discounts for quantities
AFTER-SALES ACTIVITIES
Amazon Business order download
Billing management
Upload invoices issued by Danea
Download invoices on Danea
ePrice integration
ePrice listings preparation
ePrice node installation
Sending ePrice listings
Download ePrice orders
Creation of sample product files
Orders update to ePrice
ManoMano integration
ManoMano nodes installation
Send listings to ManoMano
Download orders from ManoMano
cDiscount integration
Category matching
Shipping methods mapping
Cdiscount node
Couriers mapping
Publishing new products on cDiscount
Publication of offers on Cdiscount
Import orders from Cdiscount
Cdiscount problem fixing
Allegro integration
Allegro node installation and configuration
Create Allegro Category Matches
Publishing products on Allegro
Product update on Allegro
Import orders from Allegro
AliExpress integration
AliExpress node installation
AliExpress category matching
Publishing products on AliExpress
Product groups and AliExpress brands
Download orders from AliExpress
Wish integration
Wish node installation
Publishing products on Wish
Carrier mapping for Wish
Download orders from Wish
Order update on Wish
eCommerce
VirtueMart integration
VirtueMart node
Download orders from VirtueMart
Upload orders on Virtuemart
Upload products on VirtueMart
Download products from VirtueMart
Download product link from Virtuemart
WooCommerce integration
WooCommerce node
Download orders from WooCommerce
Download configurations from WooCommerce
Uploading orders on WooCommerce
Product publishing
Import products from Woocommerce
Plugin bindCommerce for WooCommerce
Prestashop integration
Prestashop node installation
Uploading orders on PrestaShop
Download orders from Prestashop
Downloading products from Prestashop
Product publishing on Prestashop
Connector for downloading Prestashop configurations
Magento integration
Magento node
Download orders from Magento
Upload orders on Magento
Product publishing on Magento
Import of Magento products
Shopify integration
Shopify node
Products import from Shopify
Publishing products on Shopify
Download configurations from Shopify
Integration of Mlveda's Multi Country Pricing App
Download orders from Shopify
Upload orders on Shopify
OpenCart integration
OpenCart node installation
Publishing products on OpenCart
Download orders from OpenCart
Import products from OpenCart
Uploading orders on OpenCart
Ads sites
Social Networks
Facebook Catalogue integration
Configuring the Facebook Catalogue feed
Price comparators
Google Shopping integration
Translation and content enrichment
Integration with Google Translate
Integration with Icecat
Payment systems
Integration with PayPal
Import files
File format
Data file import
API for developers
API node
Export Orders
Import Products
Export Products
Documents import
Shipping update (legacy)

bindCommerce

bindCommerce s.r.l.

VAT Number IT07798861212 - SDI M5UXCR1
Registered in Napoli - REA: NA - 910618
Share capital € 20.000,00 fully paid
Tel: +39 011 089 122 0
E-mail: [email protected]

PON 2014>20 Riaccendiamo lo sviluppo
